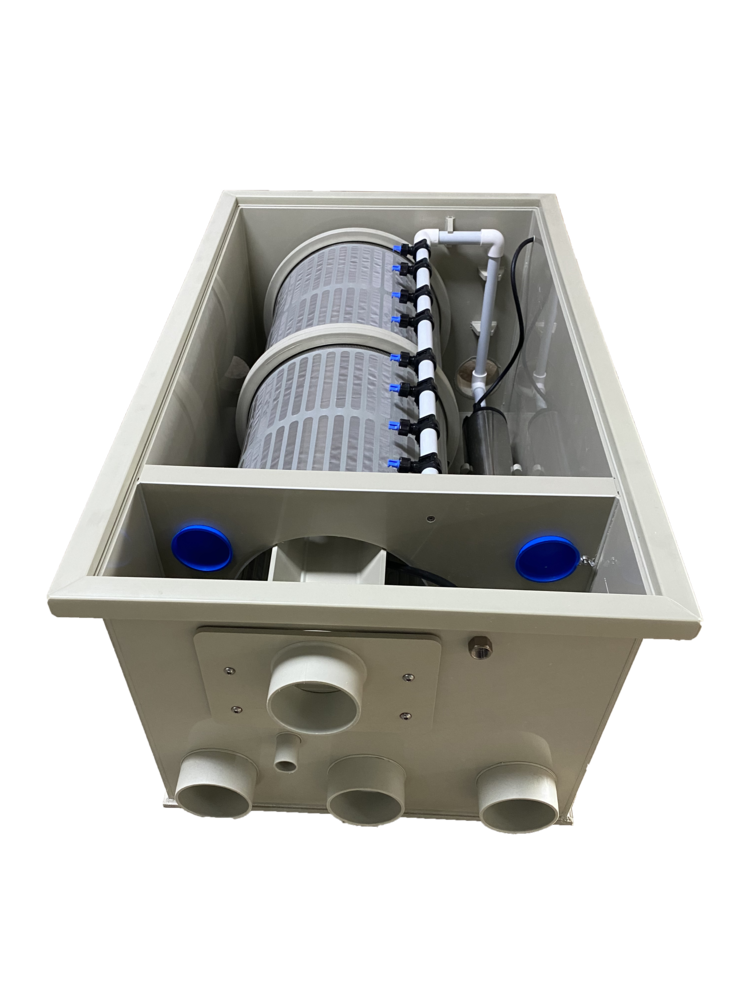

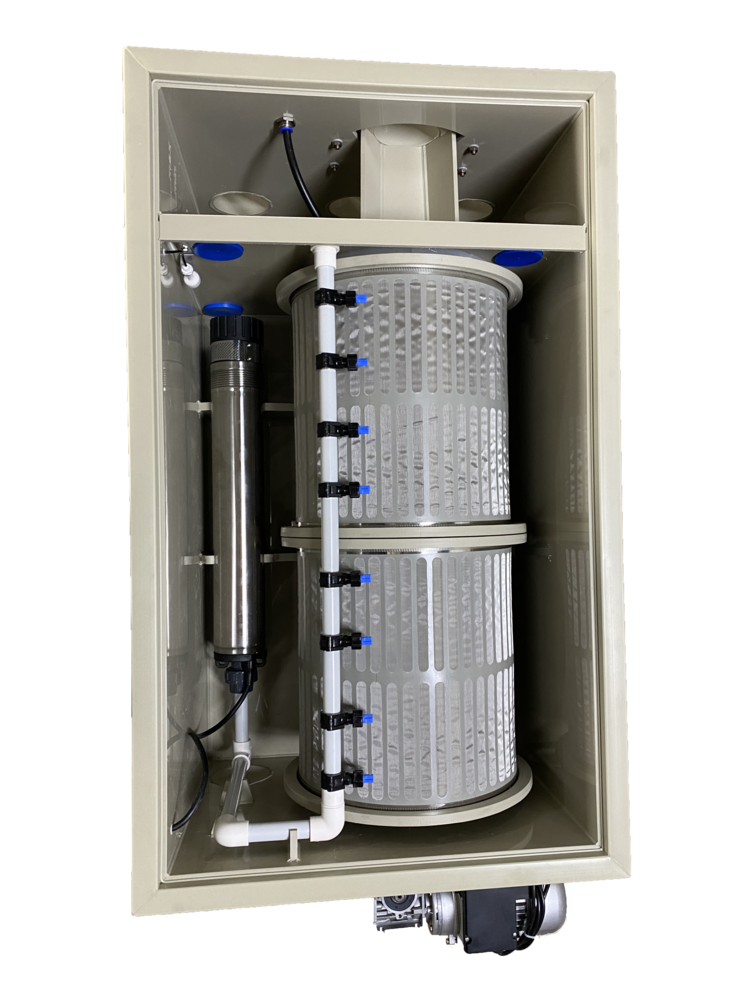

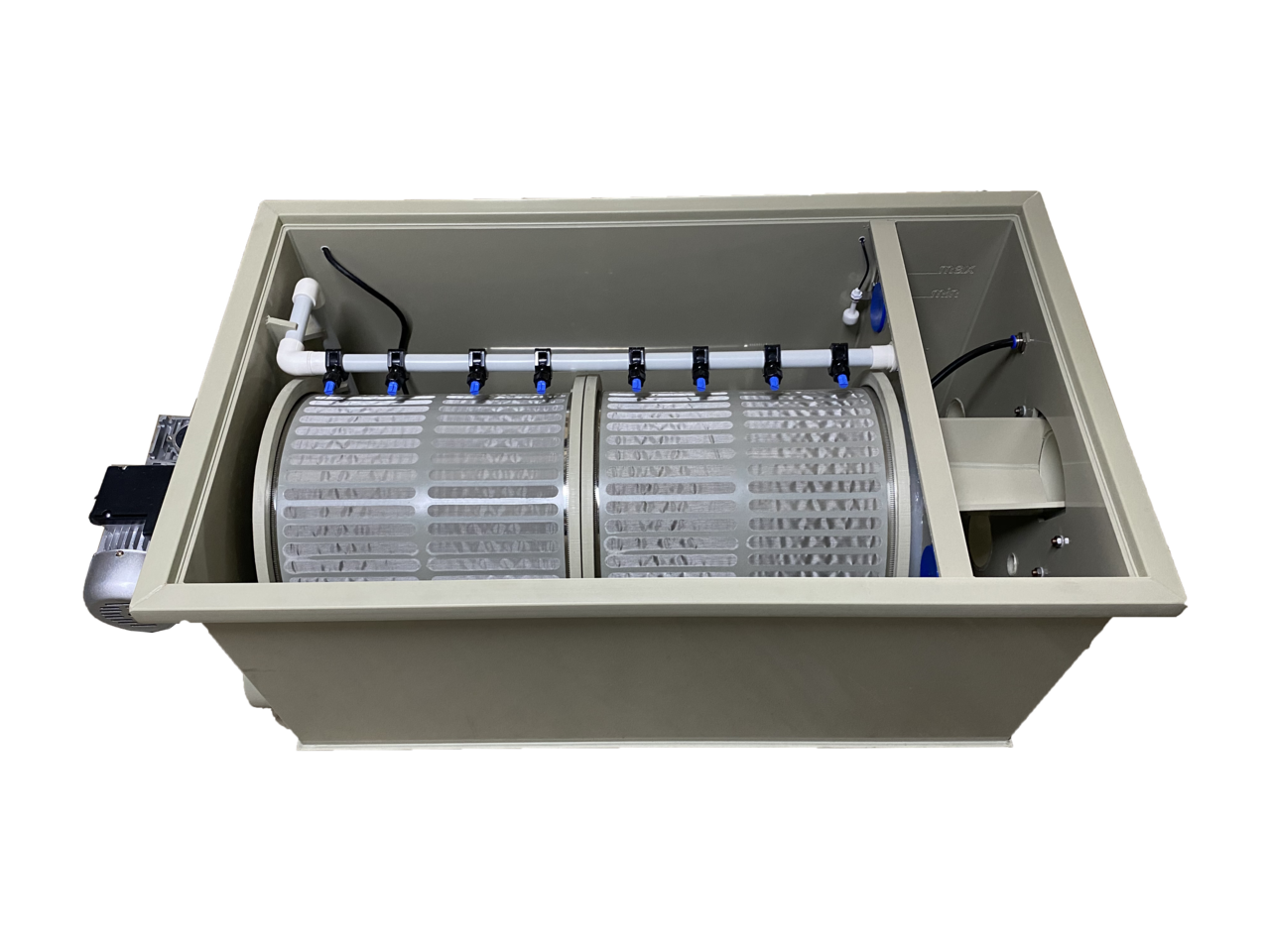

The Ilex Drum 40 drum filter has a capacity to pump 60m3 per hour.

These drum filters are supplied as standard with 3 x 110mm inlets (which can also be expanded if desired) and 3 x 110mm outlets. So that it is easy to work with, for example, an airlift system or energy-efficient pumps!

This Drum Filter is a mechanical pre-filter that easily removes very fine contamination (up to 70 microns) from a water flow.

The filter consists of high-quality materials such as stainless steel and polypropylene (PP) and aims to guarantee perfect water quality in a simple and reliable way.

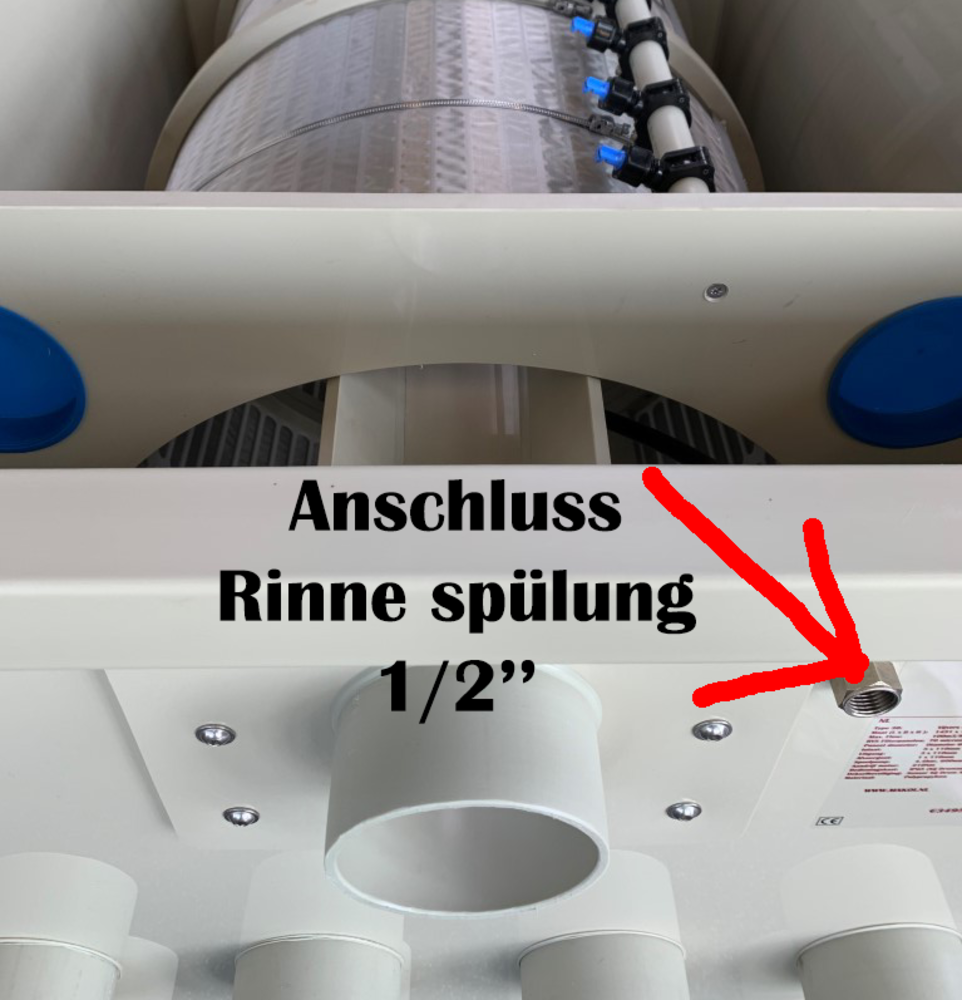

The drain consists of a sloping gutter with a 110mm connection. incl. flush connection to flush the drainage channel.

The high-pressure pump to rinse the filter screen is a 4 bar high-pressure pump from Oase with a 3-year warranty, which is included as standard

This drum filter comes complete with lid, electronics with dry-running protection and an external Oase flush pump.

Drum dimensions: diameter 420mm, length is 800mm.
Maximum flow: 60m3 per hour with maximum water level in gravity setup (minimum 4 inlets 110mm)

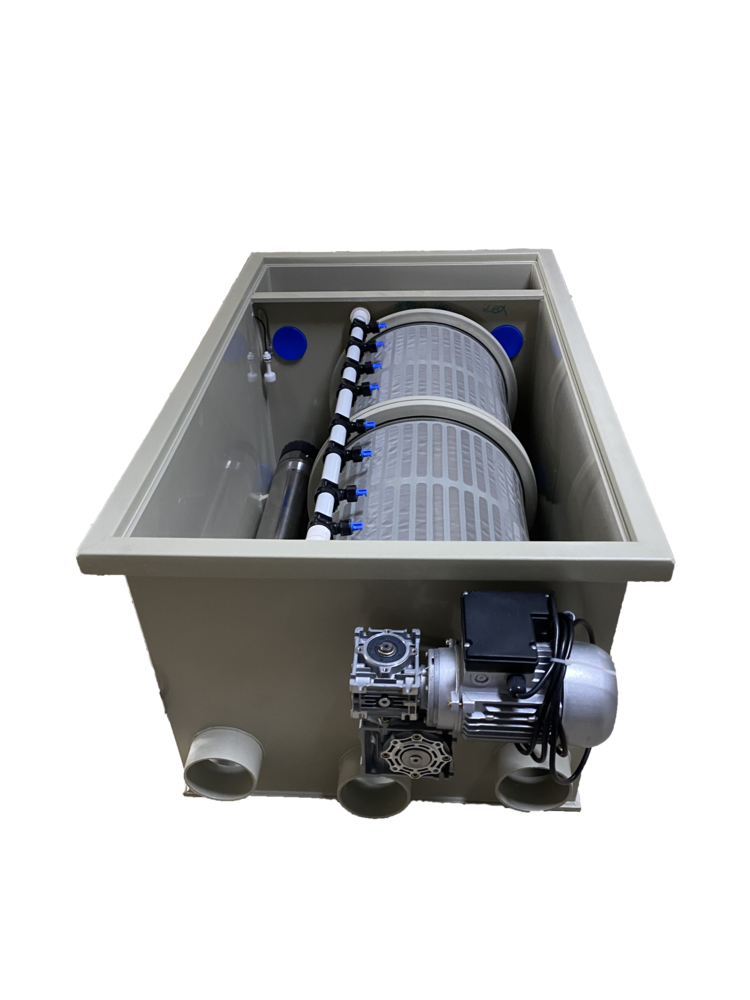

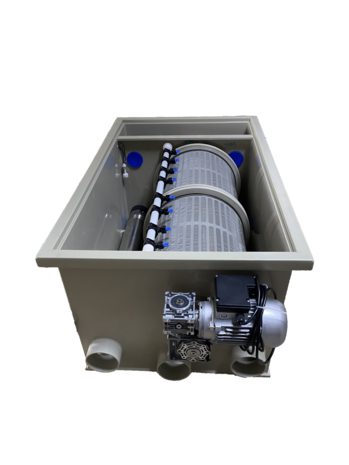

Engine: 120Nm

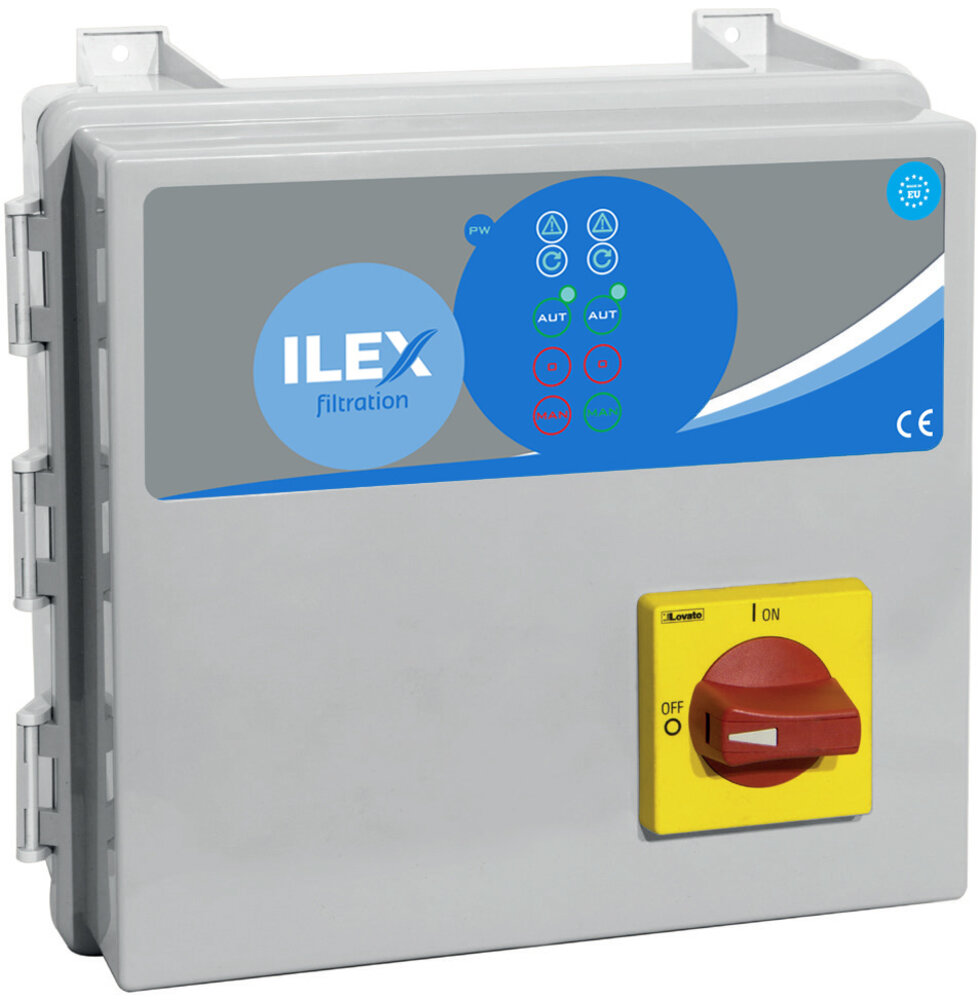

incl. Control with dry-running protection
incl. Bypass for calamities.
incl. Oasis Flush Pump

Can be set up both Pump-fed and Gravity (note, pump-fed, 30% less capacity)

Sizes:

External with motor and flushing trough: 1435 x 630 x 515mm ( L x W x H )
Water level from top: approx. 11.5cm

Download Drawing
